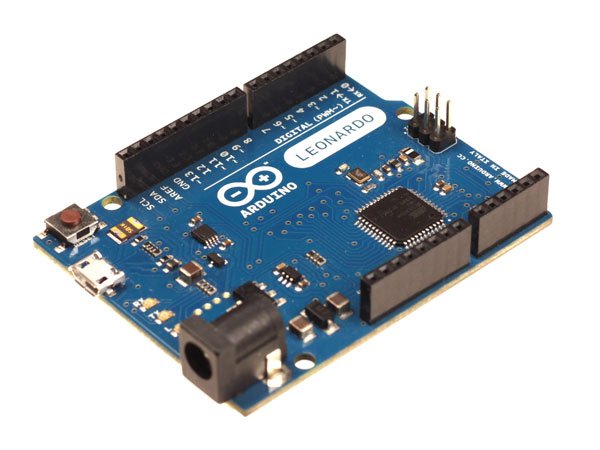

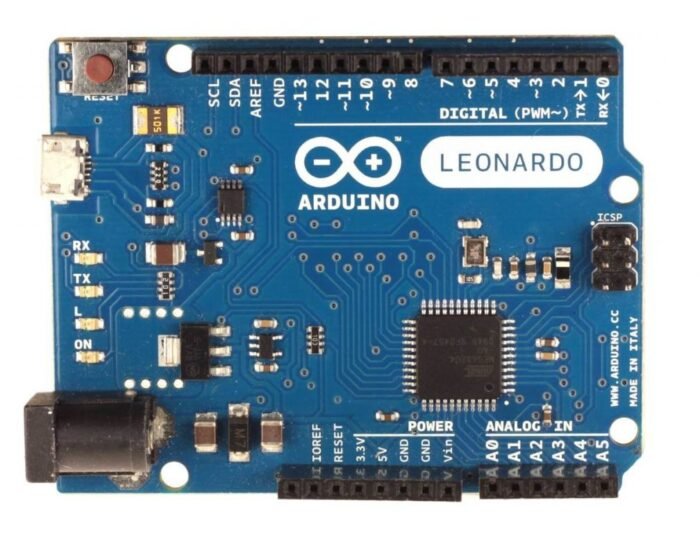

Arduino Leonardo Atmega32u Based Development Board In Pakistan

he Arduino Leonardo is a micro-controller board base on the ATmega32u4 (datasheet). It has 20 digital input/output pins (of which 7 can be used as PWM outputs and 12 as analog inputs); a 16 MHz crystal oscillator, a micro USB connection, a power jack, an ICSP header, and a reset button. It contains everything need to support the microcontroller; simply connect it to a computer with a USB cable or power it with an AC-to-DC adapter or battery to get started. Specification of Arduino Leonardo Atmega32u Based Development Board: Microcontroller ATmega32u4 Operating Voltage 5V Input Voltage (Recommended) 7-12V Input Voltage (limits) 6-20V Digital I/O Pins 20 PWM Channels 7 Analog Input Channels 12 DC Current per I/O Pin 40 mA DC Current for 3.3V Pin 50 mA Flash Memory 32 KB (ATmega32u4) of which 4 KB used by bootloader SRAM 2.5 KB (ATmega32u4) EEPROM 1 KB (ATmega32u4) Clock Speed 16 MHz Lenght 68.6 mm Width 53.3 mm Weight 20 g Package Include: 1  x Arduino Leonardo Atmega32u Based Development Board In Pakistan
