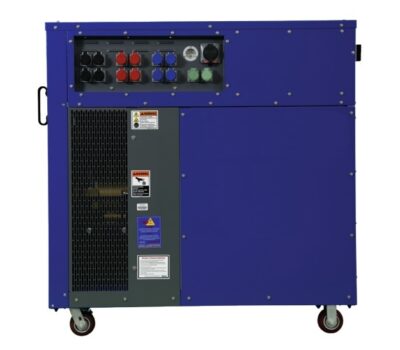

Mosebach X250S Portable Load Bank (250kW)

The Mosebach X250S Portable Resistive Load Bank is ideal for testing and maintaining generators and UPS Systems up to 250 kW. FEATURES Load Capacity: 250kW at 240 & 480 VAC 3PH 60Hz. Derates to 188kW at 208VAC 3PH, 125kW at 240V 1PH, and 31kW at 120V 1PH. Full Load Amps at 250kW: 601 Amps at 240 VAC and 301 Amps at 480 VAC. Duty Cycle: Rated for continuous operation. Load Step Resolution: 5kW at 240/480V. Controls: Local manual control panel includes Power On/Off switch, Master Load On/Off switch, and Individual Load Step switches. Instrumentation: Digital metering (V, A, Hz, kW) and data logging via a USB port. Control/Cooling Power: Requires 120V single-phase 60Hz external power source. Cooling System: Quiet high-speed cooling fans. Load Elements: Mosebach’s Cross Wire Resistor have no ceramics and therefore are lighter and more durable than any other resistor on the market today. The resistors are supported by high temperature Mica supports. Safety Features: Over-temperature and over-voltage sensors. Load Connections: Quick disconnect cam-type male connectors on the back of the load bank (2 per phase, 1 ground). Enclosure: Lightweight aluminum indoor enclosure with forklift channels. Casters and lifting bar (as shown in picture) are optional accessories (see below). DOWNLOADS X250S Spec Sheet X250S Manual Multi-Unit Remote Control Software OPTIONS Multi-Unit Remote Control Software Kit Mobility Casters Kit Center Lifting Bar Starter Spare Parts Kit Extended Warranty NRTL Certification Load Cable Set CABLE OPTIONS (SEE ACCESSORIES TAB) Steadypower 20ft or 50ft Cable Set
