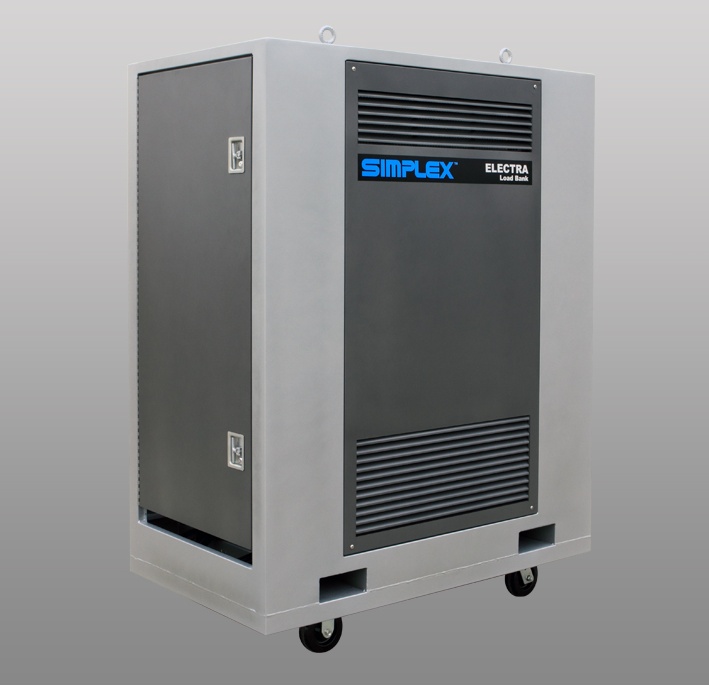

Simplex Electra Portable Load Bank (450-700kW)

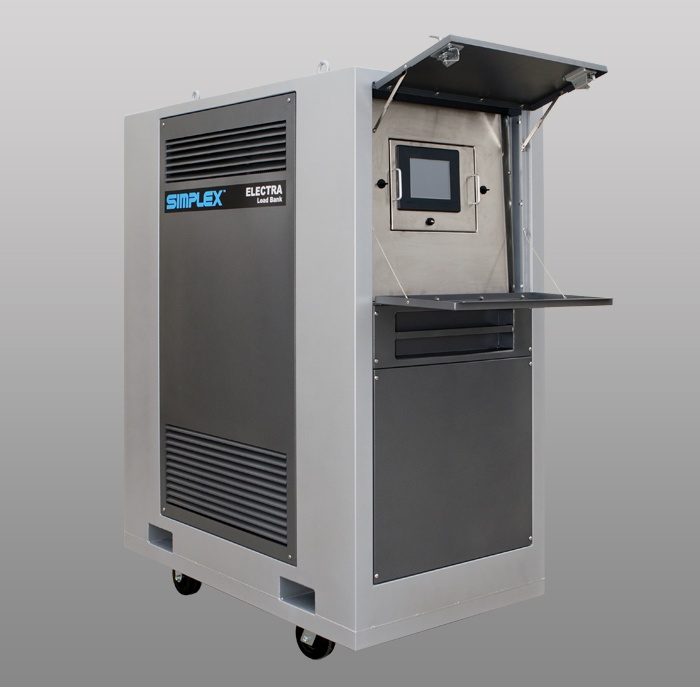

The Simplex Electra Portable Resistive Load Bank is designed to provide manufacturers, distributors, and users of large AC generators and UPS systems with sophisticated testing capability up to 700kW. FEATURES Load Capacity: Max capacity up to 500, 600, or 700 kW at 240 and 480 VAC, 3PH, 60Hz. Capacity derates at other voltages. Full Load Amps at 500 kW: 1202 Amps at 240 VAC and 601 Amps at 480 VAC. Full Load Amps at 600 kW: 1442 Amps at 240 VAC and 721 Amps at 480 VAC. Full Load Amps at 700 kW: 1683 Amps at 240 VAC and 842 Amps at 480 VAC. Duty Cycle: Rated for continuous operation. Digital Load Step Control: Nominal 5kW resolution – direct enter any load value, and controller will apply load within nominal 5kW resolution. Digital Control: PLC based control with 8-inch color TFT touchscreen interface. MODBUS over TCP/IP network communication. Touchscreen easily removable from panel. Instrumentation: Digital power transducer with built-in communication to digital controller. Data display on touchscreen. Data acquisition and recording. Control Power Supply: Dual voltage control power transformer with supply power switchable to internal (generator) or external source w/ 15ft power cord. Cooling System: Forced Air Load Elements: Simplex Powr-Web chromium alloy, open wire, continuously supported, power resistor. Load Element Circuit Protection: Branch circuit fuses. One set of fuses each 50KW branch. Fuses are current limiting type, 200KAIC, 600V, enabling safe use on large generating or UPS system. Malfunction Detection System: Protection against fan failure, high exhaust air temperature, high intake air temperature, over-voltage and fan reversal. Exhaust air temperature displays on screen. Load Connection: Cam-type power connectors. Enclosure: Indoor enclosure with casters, lifting eyes, and forklift channels. Network Capable: Any number of Electra and dynaMITE Load Banks can be combined for large system capacities and networked for central control and data acquisition. UL Listed. Electra Comparison Chart Model Max Capacity Full Load Amps Cooling System Cams Electra 500 500 KW at 240/480V 3Ph 325 KW at 208/416V 3Ph 313 KW at 380V 3Ph 333 KW at 240V 1Ph 1202A at 240V 601A at 480V 10,500 CFM 3HP Motor 4/Phase 2 Ground Electra 600 600 KW at 240/480V 3Ph 450 KW at 208/416V 3Ph 376 KW at 380V 3Ph 400 KW at 240V 1Ph 1442A at 240V 721A at 480V 12,500 CFM 5HP Motor 4/Phase 2 Ground Electra 700 700 KW at 240/480V 3Ph 525 KW at 208/416V 3Ph 439 KW at 380V 3Ph 467 KW at 240V 1Ph 1683A at 240V 842A at 480V 12,500 CFM 5HP Motor 5/Phase 2 Ground PRODUCT DOWNLOADS Electra Brochure Simplex One-Year Parts Only Warranty OPTIONS 400 Hz modification – Call for Pricing Network control cables – Call for Pricing Remote control cable extensions – Call for Pricing Simplex AUTO-TEST software for full automation of testing with data acquisition and report generation – Call for Pricing 12’ connection cable set including 3-phase power cables, ground cable, stored in rear compartment – Call for Pricing Weather resistant enclosure for 500-600 models (ELECTRA-WEATHER) – ADD $3,168.00 Highway trailer for 500-600 models (ELECTRA-TRAILER) – ADD $19,070.00 Steadypower 20ft or 50ft Cable Set (see below to order)
