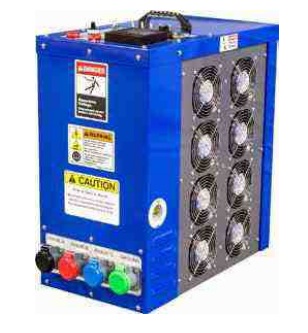

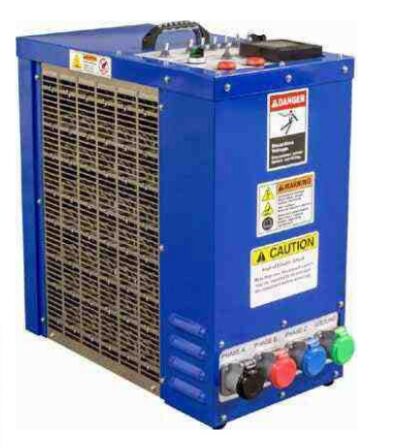

Trystar LC100 Portable Load Bank (100kW)

The Trystar LC100 Portable Resistive Load Bank offers a load capacity up to 100 kW in a lightweight, compact, and portable package. FEATURES Load Capacity: Up to 100kW at 480 and 240 VAC, 3-Phase, 60Hz.  Derates to 75kW at 208VAC, 3-Phase, 60Hz. Full Load Amps at 100kW: 240 Amps at 240 VAC and 120 Amps at 480 VAC. Duty Cycle: Rated for continuous operation. Load Step Resolution: 5kW minimum at 480VAC. Controls: Main Power On/Off switch, Master Load On-Off switch, Load Voltage Selector switch, and Individual Load Step switches (KW On/Off) provided for each load step. Illuminated indicators provided for Power On, Over-Temperature/Airflow failure, and Wrong Voltage Applied. Digital Power Meter (M): Fully equipped, 3-phase Digital Metering System that measures a standard range of 16 load parameters. Includes RS485 (Modbus protocol) for remote reading – compatible with PC, PLC, and data loggers. Control/Cooling Power: External 120 Volt AC, 1-phase, 10 Amp source. A 15ft detachable line cord is provided. Cooling System: Integrally mounted high-performance high-velocity cooling fans deliver the required airflow volume for cooling resistor load elements. Cooling airflow is drawn from the screened air-intake side, with hot air exhausted from opposite side of the unit away from personnel. Load Elements: PowerDyne™ Resistor Load Elements provide the necessary KW load rating for each load step. Change in resistance is minimized by maintaining conservative, thermally de-rated resistor designs and by utilizing a high-quality nickel chrome alloy. Tolerance is 5%. Safety Features: Over-Temperature / Airflow failure protection. Fuses for short-circuit protection. Load Connections: Quick connect-disconnect color-coded male cam-type power connectors with protective snap-back covers. (1 per Phase, 1 Ground). Enclosure: Constructed of aluminum and galvanized steel with powder coat paint finish. Top lifting handle for easy lifting and positioning. DOWNLOADS Trystar LC100 Spec Sheet Trystar LC100 Drawing Trystar LC100 Manual Trystar Portable Load Bank Brochure OPTIONS Rugged Transport Case with recessed handles and 4″ casters. Steadypower 20ft or 50ft Cable Set (see below to order).
