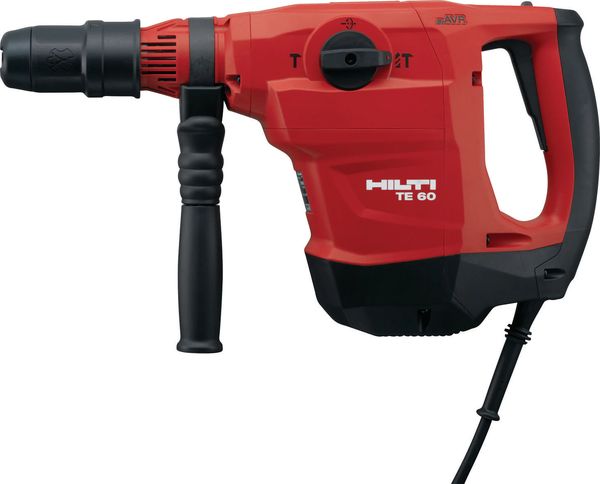

DescriptionTE 60-AVR ROTARY HAMMER Model TE-60AVR Brand HILTI Serial_No 78775Versatile and powerful SDS Max (TE-Y) rotary hammer for concrete drilling and chiseling, with Active Vibration Reduction (AVR) Weight according EPTA-Procedure 01/2003: 15 lb. Single impact energy: 5.8 ft-lbs Hammer drilling diameter range: 15/32 – 1-9/16 in Features High versatility for a wide range of drilling and chiseling applications Exceptionally high performance-to-weight-ratio Active Vibration Reduction (AVR) makes the tool less tiring to use – helping to increase daily productivity Optional DRS-Y dust removal system collects up to 95% of dust Detachable supply cord for quick and easy replacement of damaged/broken cords on the jobsite Applications Drilling anchor and through-holes in concrete and masonry (recommended diameter range 18-80 mm) Coring in masonry and concrete with TE-Y BK core bits up to 122 mm diameter Coring in masonry with optional DD-TE-Y-DR adapter and DD-Y PCM core bits up to 122 mm diameter Drilling anchor and through-holes in concrete and masonry (recommended diameter range 5/8″” – 3 1/8″”) Coring in masonry and concrete with TE-Y BK core bits up to 4-15/16″” diameterTECHNICAL DATA Weight according EPTA-Procedure 01/200315 lb.Single impact energy5.8 ft-lbsHammer drilling diameter range15/32 – 1-9/16 inOptimum Hammer drilling range23/32 – 1-9/16 inHammer drilling RPM340 rpmFull hammering frequency3300 impacts/minuteFunctionalityActive Vibration Reduction (AVR), ChiselingTriaxial vibration value for hammer drilling into concrete (ah,HD)10.5 m/s² 1Dust removal system availableTE DRS-Y, TE DRS-D, TE DRS-BKTriaxial vibration for chiseling into concrete9.1 m/s² 2Dimensions (LxWxH)19.1 x 4.5 x 10.7 mm.
