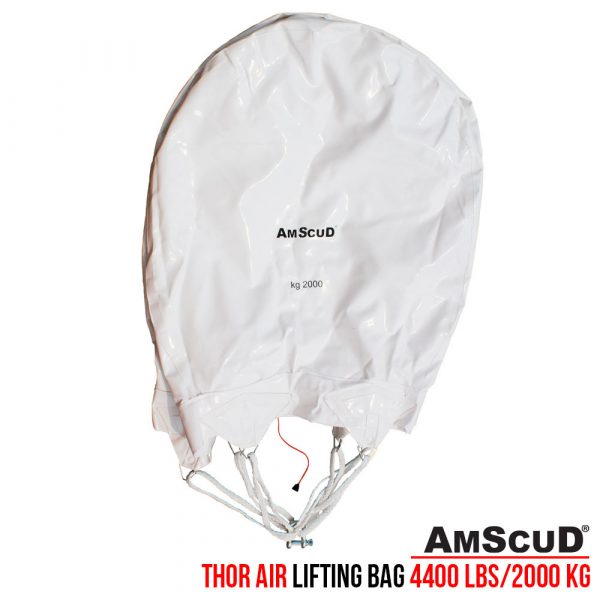

AmScuD Thor Air Lifting Bag – 4,400 lbs (2000 kg) Lift Capacity

The AMSCUD Thor Air Lift Bag is part of a standard range of Air Lift Bags (ALB) for supporting and lifting loads from any depth. Their advanced design and careful construction ensures a safe and robust product which is universally accepted by marine contractors and salvagers around the world. While good for vessel draft reduction and often used for lightening underwater structures, their main application is for lifting vessels and other loads from the seabed to the surface. Features: Overall assembly tested and proven to a 5:1 minimum WLL safety factor Tested and proven inverter line attachment point High performance structural fabric canopy High tensile Polyester 3×3 Panama basecloth Webbing strops terminate at single lifting ring Unique ‘de-tangler’ for zero visibility rigging Heavy duty UV stabilized PVC coating RF welded seams for strength Specifications: Lift: 4,400 lbs (2,000 kg) 2 in. Bottom Operated Dump Valve 3/4 in. Quarter Turn Ball Valve with 3/4 in. Camlock Inflated Dimensions: 8.2 H X 5.91 Diameter Feet (2.5 H X 1.8 Diameter Meters) Packed Dimensions: 2.62 L X 1.31 H X 0.98 Depth Feet (0.8 L X 0.4 H X 0.3 Depth Meters) Deflated Dimension: (1.71 L X 1.5 H X 1.1 Depth Meters) Weight: 50.71 lbs (23 kg) Air Lift Bag – 2,200 lbs (1000 kg) Lift Capacity – SKU
