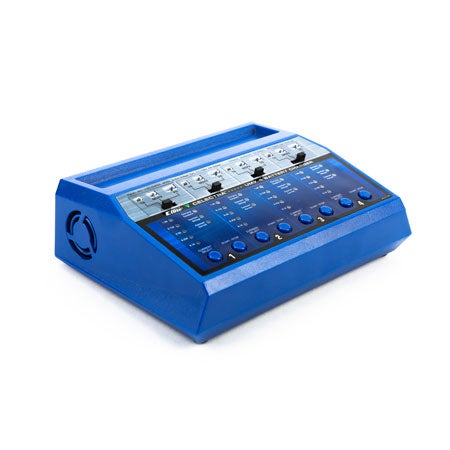

EFLC1105AEU - Ultra Micro-4, 4x9W, AC/DC Battery Charger, EU

Ultra Micro-4, 4×9W, AC/DC Battery Charger Key Features Compact, rugged design All four ports can be used simultaneously or one at a time Works with Blade®, E-flite® and ParkZone® 1S as well as 2S ultra micro Li-Po batteries Four independently functioning charge circuits each with a simple LED status display 9 Watts of dedicated power per port Five selectable charge rates from 0.1–1.0A Each port is suitable for charging one 30–150mAh, 1S UM cell, a 1S MCPX cell, or one 120–300mAh 2S pack equipped with a JST-PH, 3-wire connector Operates on 100–240V AC (50/60Hz) or 11–18V DC input voltage Built-in protection features guard against short circuit, over current and reverse polarity Detachable AC and DC power cords and 1S battery extension leads included Overview Ideal for charging any combination, of up-to four 30–500mAh, 1S UM and MCPX batteries as well as 2S battery packs equipped with the 3-wire JST-PH plug featured on UMX-class airplanes and helicopters. Its AC/DC capability means that you have the option to use a separate DC power supply or simply connect the charger to a household wall outlet. Built-in sockets make it easy to connect single-cell batteries. In addition, UM battery leads are provided when preferred by the user. The rugged case features four independently functioning charge circuits, each with a simple LED status display. All four ports have 9 watts of dedicated power and five selectable charge rates from 0.1–1.0A. Built-in protection features guard against short circuit, over current and reverse polarity. CHARGES • 2S, 120–300mAh Li-Po packs with the JST-PH plug • 1S, 200mAh ultra micro MCPX Li-Po • 1S, 500mAh ultra micro Li-Po (adapter required) • 1S, 30–150mAh ultra micro Li-Po INCLUDES • UMX-4 charge unit • AC power cord • DC power cord • 1S UM battery extension lead • 1S MCPX battery extension lead Product Specifications Input: 100-240V AC or 11-18V DC Cells: 1-2 LiPo Charge Rate: 0.1 to 1.0A Input Connector: AC cord, North American plug, DC cord, alligator clips Output Connector: Ultra Micro, 2S Battery Type: LiPo Cooling Method: Convection Cooled LED: Yes Length: 7.09 in (180mm) Width: 5.51 in (140mm) Height: 2.17 in (55mm) Overload Protection: Yes
