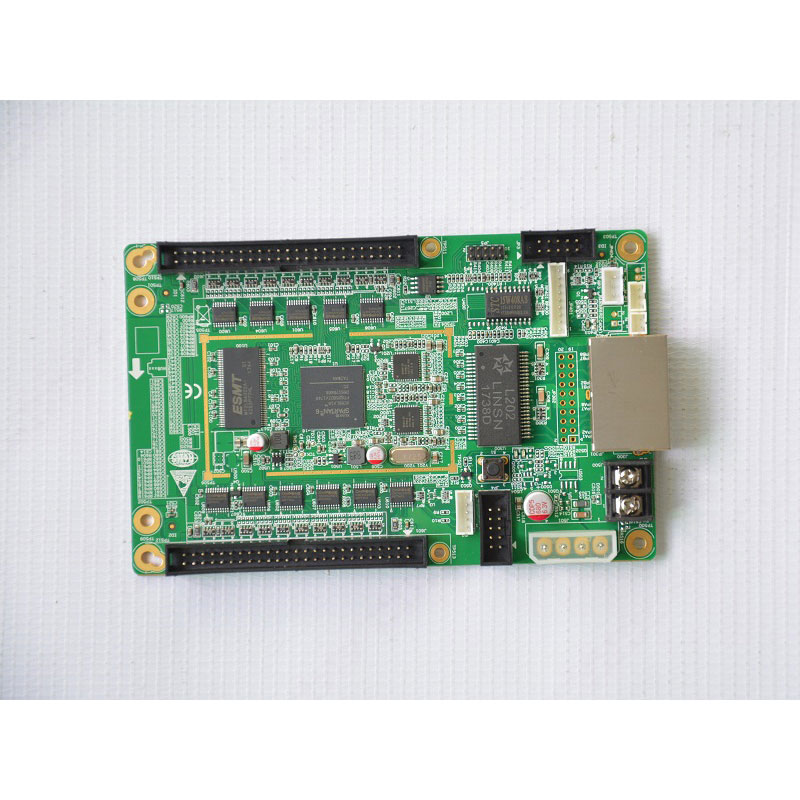

DescriptionLinsn RV901H Full Color LED Receiving CardRV901H/921H/931H is upgraded from the 8th generation system RV801. Compared with RV801, RV901 has all functions of RV801 and can replace RV801, besides, RV901 is added the following functionality:Product features: 1. Single card maximum supports 1024X256 pixels, and 1024 grades single pixel chromaticity correction 2. Supports single-card color space conversion 3. using18-bit signal processor, maximum support 18-bit (260,000) gray (each of red, green and blue) 4. support 12-bit HDMI colors input (required the 9th generation sending card) 5. Support network cable BER test 6. Support configuration file readback 7. Support program replication 8. Three lines Voltage monitoring: one for the system, two for cabinet power 9. Supports hot backup with dual receiver cards for demanding performances screen 10. Support the cabinet-door monitoring (open/close) 11. Supports pixel fault detection (requires a dedicated chip support) 12. Temperature monitoring 13. Support flat cable fault detection 14. Two lines fan-speed monitoring 15. Smoke monitoring (smoke module sold separately) 16. Humidity monitoring (humidity sensor sold separately) 17. In line with EU standards CE-EMC
