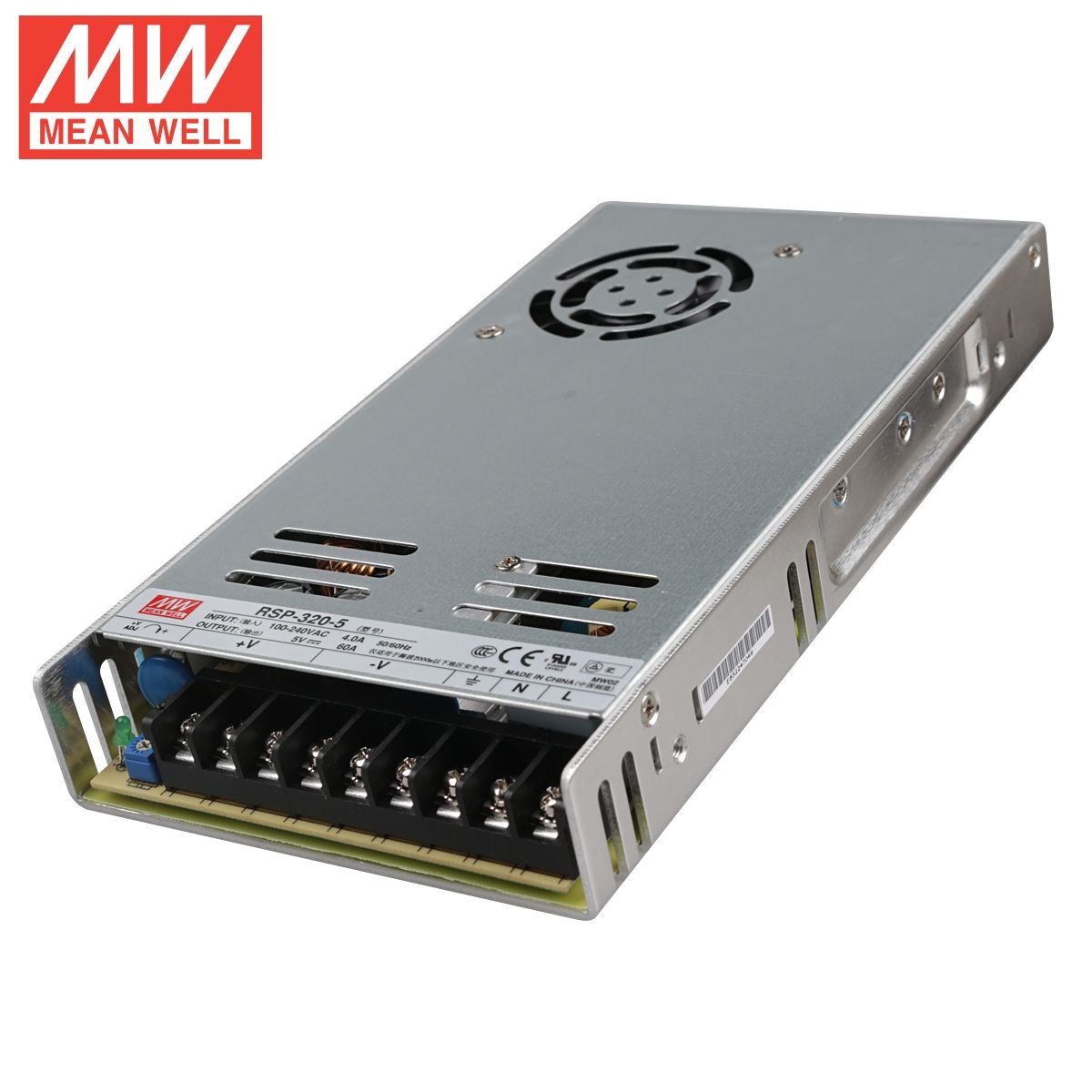

DescriptionMeanWell 5V 60A 300W switching power supply (RSP-320-5)Case:806 Size:215×115×30mm Power: 300W High efficiency up to 90% Built-in active PFC function, PF>0.95 LED indicator for power on Forced air cooling by built in DC Fan with fan speed control function 1U low profile 30mm High efficiency, Long life and high reliability Protections: Short circuit / Overload / Over voltage / over temperature 1 year warrantyProduct Specifications :ModelRSP-320-5InputVoltage Range85~ 264VAC 120~ 370VACFREQUENCY RANGE47 ~ 63HzAC CURRENT (Typ.)3.5A/115VAC 1.5A/230VACLEAKAGE CURRENT<2mA / 240VACINRUSH CURRENT (Typ.)COLD START 65A/230VACEFFICIENCY (Typ.)83%OutputRATED CURRENT60ADC VOLTAGE5VRATED POWER300WCURRENT RANGE0-60AVOLTAGED ADJ. RANGE4.5~ 5.5VRIPPLE & NOISE (max.) Note.2150mVp-pVOLTAGE TOLERANCE Note.3±2.0%LOAD REGULATION Note.5 ±1.5%LINE REGULATION Note.4 ±0.5%HOLD UP TIME20ms at full loadSETUP, RISE TIME600ms,40ms at full loadProtectionOVER VOLTAGE5.75~ 6.75V Protection type :Shut off 0/p volltage, clamping by zener diodeOVER LOADAbove 150% rated output power Protection type :Hiccup mode, recovers automatically after fault condition is removedSafetyWITHSTAND VOLTAGEI/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVACSAFETY STANDARDS Note 6UL60950-1, CB(IEC60950-1),CCC GB4943, 1:2011 approvedISOLATION RESISTANCEI/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25 / 70% RHEMC STANDARDSEN55022 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11, GB9254Environment WORKING HUMIDITY 20 ~ 90% RH non-condensing WORKING TEMP -20 ~ 70 (Refer to output load derating curve) TEMP. COEFFICIENT ± 0.03%/℃ (0 ~ 50℃) STORAGE TEMP., HUMIDITY -40 ~ 85 , 10 ~ 95% RH VIBRATION 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes Others DIMENSION 215*115*30mm (L*W*H)MTBF1608.8K hrs min. MIL-HDBK-217F (25 ) ℃NoteI. Al parameters NOT specialy mentioned are measured at 230VAC input. rated load and 25℃ of ambient temperature. 2 Ripple & noise are measured at 20MHz Of bandwidth by usig a I2′ twisted pair-wire terminated with a 0.1UI & 470 Parallel capacitor 3. Tolerance : includes set up tolerance. line regulation and load regulation. 4. Line regulation is measured from low line to high line at rated load. 5. Load regulation is measured from 0% to 100% rated load. 6. For the request of GEl4943.1.the power soppy is only suable for use in the altitude 2000m below and the non tropical climate condrtion. 7. The power supply is considered a component which will be instated into a final equipment The final equipment must be re-confirmed that it still mesh EMC drectives. For guidance on how to perform the EMC tests. please refer to ‘EMI testing of component power supplies’
