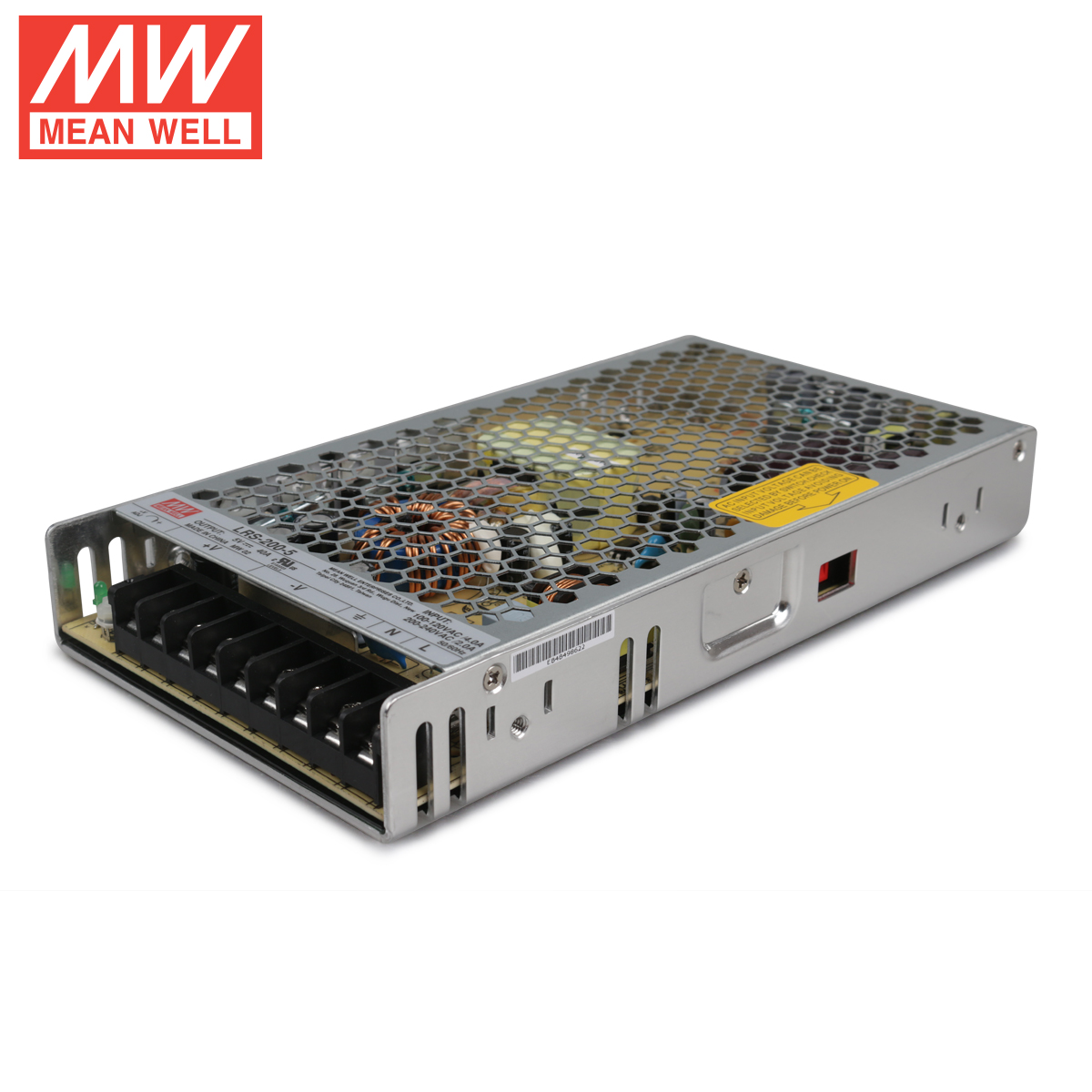

DescriptionMEANWell LRS-200-5 Switching Power SupplyProduct Specifications :ModelLRS-200-5InputVoltage Range (Note 4)90 ~ 132VAC / 180 ~ 264VAC by switch 254 ~ 370VDCFREQUENCY RANGE47 ~ 63HzAC CURRENT4.5A/115VAC 2.5A/230VACLEAKAGE CURRENT<3.5mA / 240VACINRUSH CURRENT (max.)40A/115VAC 55A/230VACEFFICIENCY (Typ.87%OutputRATED CURRENT 40ADC VOLTAGE 5VRATED POWER 200WCURRENT RANGE 0-40AVOLTAGED ADJ. RANGE 4.5 ~ 5.6VRIPPLE & NOISE (max.) Note.2 150mVp-pVOLTAGE TOLERANCE Note.3±2.0%LOAD REGULATION ±1.0%LINE REGULATION ±0.5%HOLD UP TIME20ms/230VAC 16ms/115VAC at full loadSETUP, RISE TIME1000ms, 50ms/230VAC 1000ms,50ms/115VAC at full loadSafetyWITHSTAND VOLTAGEI/P-O/P:3KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVACSAFETY STANDARDSUL60950-1 approvedISOLATION RESISTANCEI/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25 / 70% RHEnvironment WORKING HUMIDITY 20 ~ 90% RH non-condensing WORKING TEMP -20 ~ 50 (Refer to output load derating curve) TEMP. COEFFICIENT ± 0.03%/℃ (0 ~ 50℃) STORAGE TEMP., HUMIDITY -20 ~ 85 , 10 ~ 95% RH VIBRATION 10 ~ 500Hz, 3G 10min./1cycle, 60min. each along X, Y, Z axes Others DIMENSION 215*115*50mm (L*W*H)MTBF271.9K hrs min. MIL-HDBK-217F (25 ) ℃Note1:All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature 2:Rippled & noise are measured at 20MHz of bandwidth by using a 12 twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor 3:Tolerance: includes ast up tolerance, line regulation and load regulation 4:Please connect positive pole of input voltage with mark “L” of terminal block, connect negative pole of input voltage with mark “N” of terminal block, using DC voltage for input voltage.
