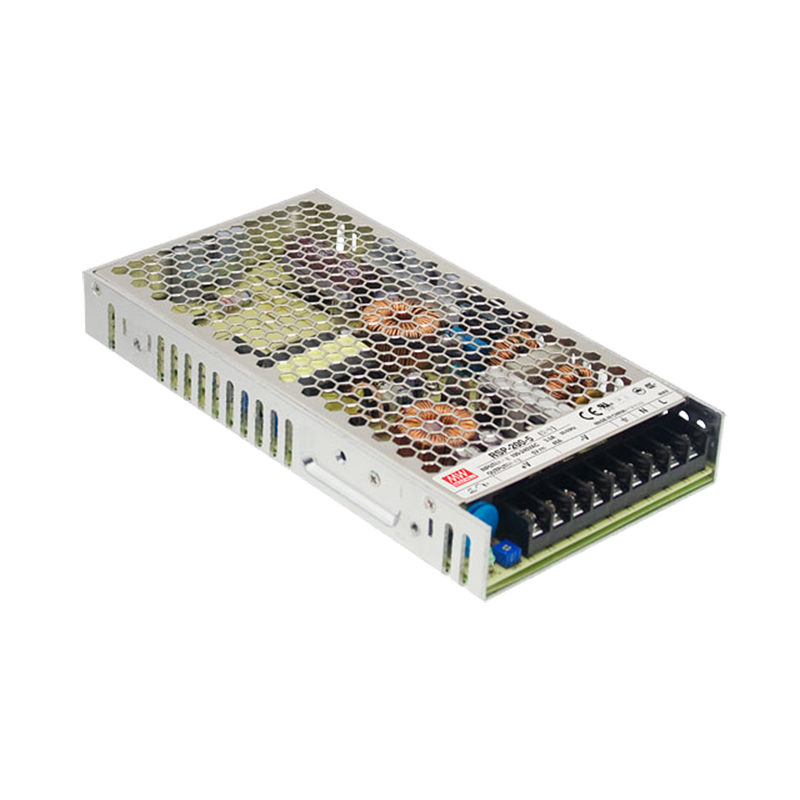

MEANWell RSP-200-5CCG Switching Power Supply

DescriptionMEANWell RSP-200-5 Switching supplyProtective cover design Three anti-treatment (anti-mold, anti-moisture, anti-salt spray)5V  40A 200WUniversal AC input / Full rangeBuilt-in active PFC function, PF>0.95High efficiency up to 90%Protections: Short circuit / Overload / Over voltage / Over temperatureForced air cooling by built-in DC Fan with fan speed control function1U low profile 30mmOptional conformal coating models (RSP-200- CC) â–¡LED indicator for power on2 years warrantyCase:806 Size:215*115*30AC input voltage range———88-132VAC/ 176-264VAC selected by switchInput frequency———————————47-63HzAC inrush current——————————–Cold start Œ40A/230VACDC adjustment range—————————–±10% rated output voltageLine regulation full load————————≤0.5%Output over load protection——-110%-150% hiccup mode auto-recoveryRise，hold up time——————–50mS 20mS at full load typicalWithstand voltage——-I/P-O/P,I/P-FG:1.5KVAC, O/P-FG: 0.5KVAC, 1minWorking temperature—– -10~ 40C @100%- 60 @60% loadStorage temperature—– -20- 85C 20%~95%RH(non condensing)Safety standards——Design refer to GB4943 UL60950-1,EN60950-1EMC standards——- Design refer to GB9254 EN55022 class ACooling method———————Forced air cooing by built-in DC fan
