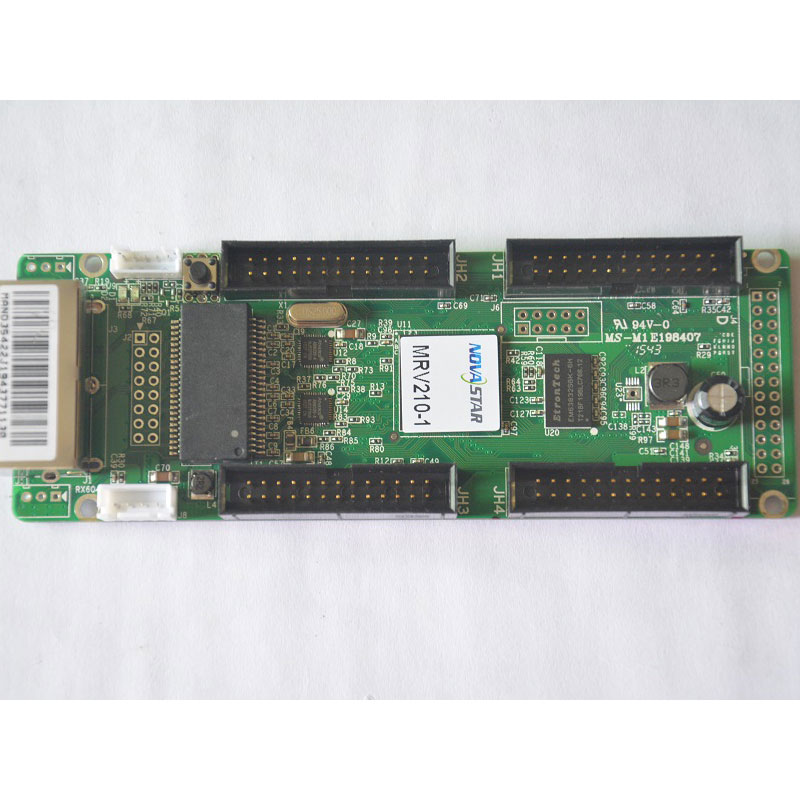

DescriptionNovastar MRV210-1 LED Receiver Card SpecificationNOVASTAR MRV210-1 is a full color receiving card with 24-group data mode of Nova M3. Its characteristics are as follows:1) Single card outputs 16-group of RGBR data; 2) Single card outputs 20-group of RGB data; 3) Single card outputs 24-group of RGB data; 4) Single card outputs 64-group of serial data, can be expanded to 128-group; 5) Single card support resolution 256×220 pixels; 6) Support configuration file read back; 7) Support temperature monitoring. 8) Support Ethernet cable communication status detection; 9) Support power supply voltage detection; 10) Support high gray-scale high-refresh the high and low brightness mode refresh. 11) Support pixel by pixel brightness and chromaticity calibration. 12) Each of port has VCC PIN, the module can power supply to the control system; 13) Comply with EU CE-EMC standard.Single card outputs16-group of RGBR data20-group of RGB data24-group of RGB data64-group of serial data ModuleSpecificationMRV210-1Standard model, male connector on topMRV210-2Male connector on bottomMRV210-3Female connector on topMRV210-4Female connector on bottom
