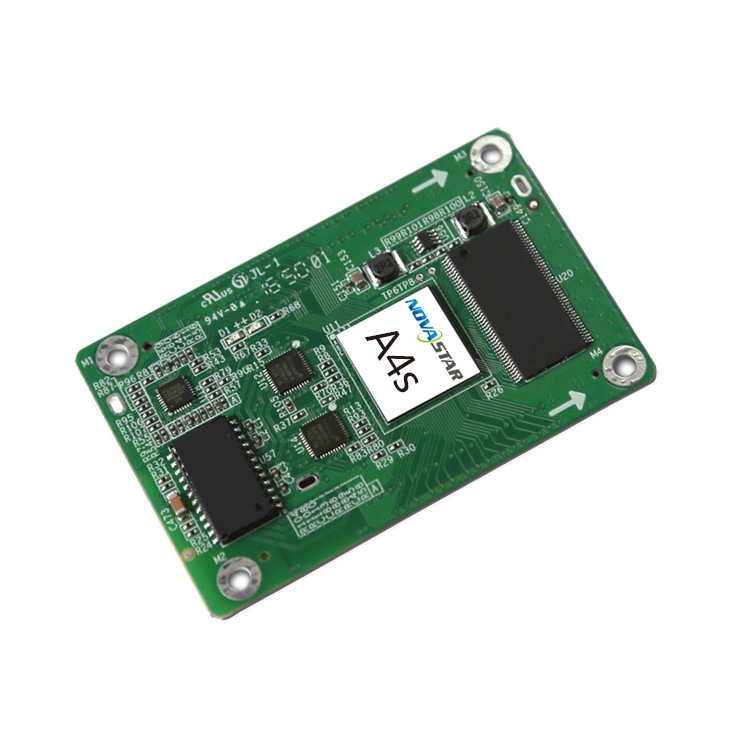

DescriptionNovastar A4S LED mini Receiving Card DetailsNovastar A4S LED mini Receiving Card max support 256*256 pixels.A4S is the new receiver card from Nova, single card max support 256 x 256 pixels. It has the follow up features:1) 256×256 resolution 2) 24 RGB data out 3) MOM Interface 4) Pixel level color & brightness calibration 5) RCFG Backup & Read 6) Cabinet Mapping Maximum Loading Capacity256×256 pixelsElectrical ParametersInput voltageDC 3.3 V–5.5 VRated current0.5 ARated power consumption2.5 WOperating EnvironmentTemperature-20°C– 70°CHumidity10% RH–90% RH, non-condensingStorage EnvironmentTemperature-25°C– 125°CPacking InformationPacking specificationsEach card is shipped with an antistatic bag and anti-collision foam. Each box contains 40 cards.Packing box dimensions378.0 mm × 190.0 mm × 120.0 mmDimensions70.0 mm × 45.0 mm × 7.3 mmNet Weight17.3 gCertificationsRoHSEMC Class B
