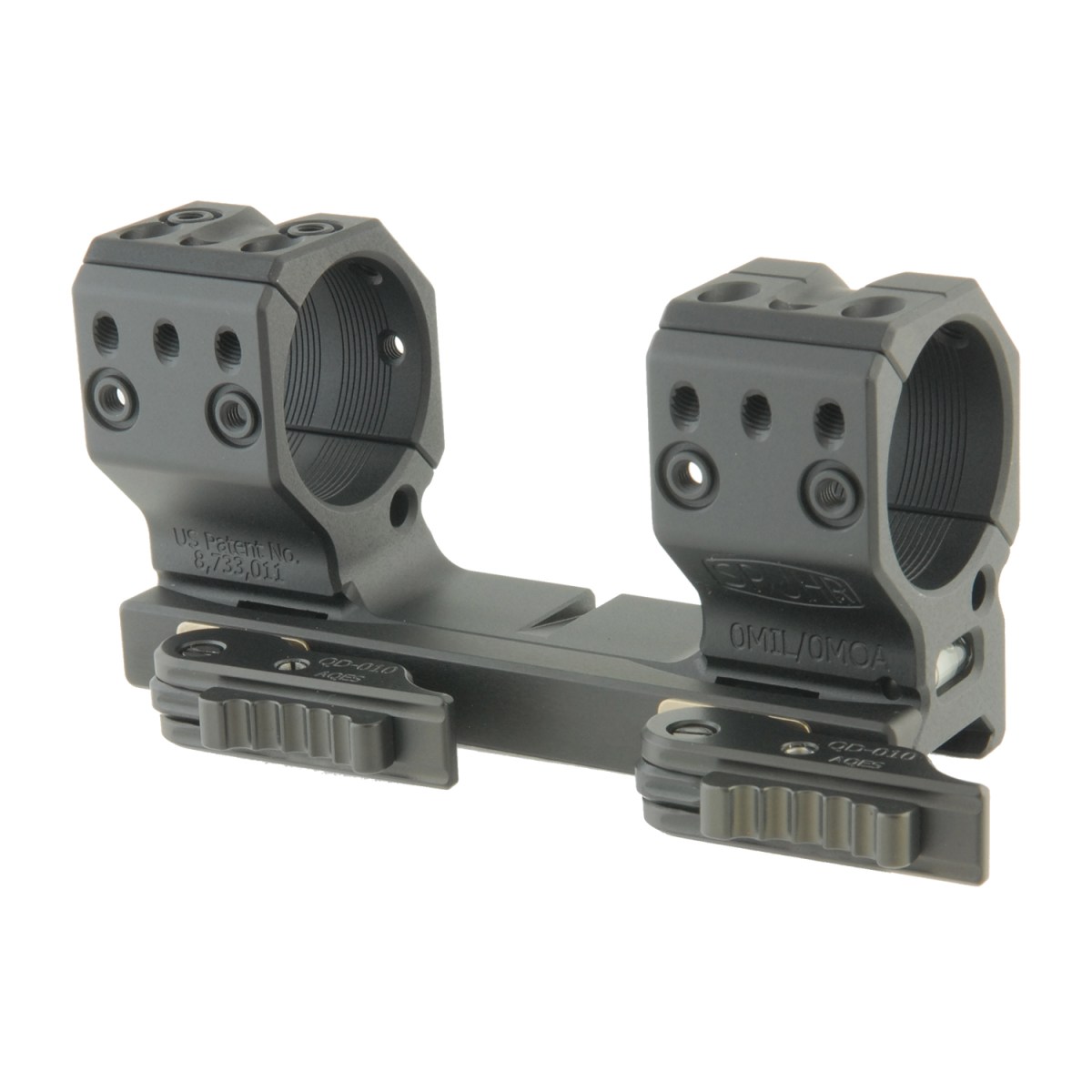

Spuhr QDP-4002 Ø34 H38mm/1.5″ 0MIL QDP

Description Spuhr qdp-4002 Manual.pdf The IDEAL SCOPE MOUNT SYSTEM series of mounts feature seven set of interfaces to attach any of more than 40 different accessories, and has a bubble level integrated in the rear planeof the mount body to prevent canting of the rifle. The rings are diagonally cut for increased visibility of the elevation and windage turrets (US Patent 8,733,011). The mounts are machined from billet 7075 T651 aluminum and all aluminum parts are hardcoat anodized. The Torx 20 ring screws are zinc-nickel coated for corrosion resistance. The screws come pre-waxed from the factory to ensure proper torque values. The levers can be adjusted for tension. The mount is shipped with a manual and a “wedge” leveling key. NOTE: The QDP-4002 is a quick detachable version of the SP-4002, designed for use with 56 mm objectives on rifles with MIL-STD-1913 or STANAG 4694 rails, and is especially suitable for extended Picatinny rails combined with night vision equipment. The QDP-4002 will fit most 34 mm scope tubes except for scopes with extended erector housings, such as the US Optics TPAL/EREK.
