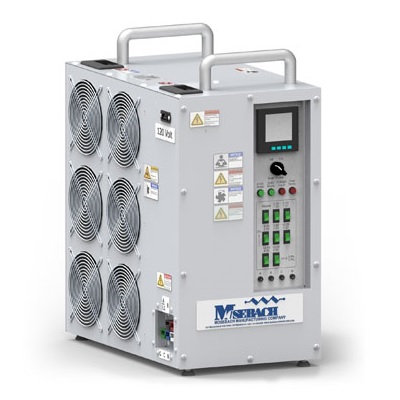

Mosebach X60C Portable Load Bank (60kW)

The Mosebach X60C Portable Resistive Load Bank is ideal for testing and maintaining generators and UPS Systems up to 60 kW at 208 & 416 VAC 3PH. FEATURES Load Capacity: 60kW at 208 & 416 VAC 3PH. Derates to 20kW at 240V 1PH, and 20kW at 120V 1PH. Full Load Amps at 60kW: 166 Amps at 208 VAC. Duty Cycle: Rated for continuous operation. Load Step Resolution: 3kW at 208 & 416V. Controls: Local manual control panel includes Power On/Off switch, Master Load On/Off switch, and Individual Load Step switches. Instrumentation: Digital metering (V, A, Hz, kW) and data logging via a USB port. Control/Cooling Power: Requires 120V single-phase 60Hz external power source. Cooling System: Six quiet high-speed cooling fans. Load Elements: Mosebach’s Cross Wire Resistor have no ceramics and therefore are lighter and more durable than any other resistor on the market today. The resistors are supported by high temperature Mica supports. Safety Features: Over-temperature and over-voltage sensors. Load Connections: Three foot power cable set. Enclosure: Compact indoor enclosure with two lifting handles. Carrying Case: Protective case with handles and wheels. DOWNLOADS X60C Spec Sheet OPTIONS (Call for Pricing) Starter Spare Parts Kit Extended Warranty NRTL Certification
